PA OPTION 3 (20-100pax)
2x ICE 500
Specification:
Power: 560W
Input sensitivity: 1V - 10kOhm
Frequency range: 65Hz-20kHz
Dispersion: 90 ° H x 90 ° E
Maximum SPL: 126dB
Dimension: 330 x 490 x 382mm
Weight: 24kg

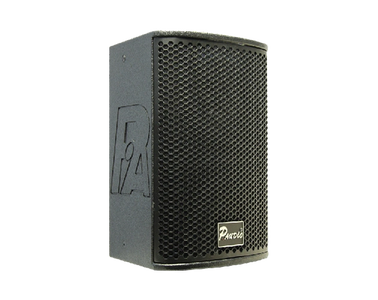

The ICE-500 pa system is a 2-way, 2 amplified active sound box, consisting of:
1 x 8 ″ coaxial and 1 x 8 ”LOW-MID driver with 2 oj coil, uses a Bang & Olufsen ICE500 amplifier and operates in the 65Hz to 2000Hz band (or 90Hz filter)
1 ″ TWEETER driver with 1.75 "coil in horn system using AB class 60W amplifier
Coaxial point source design allows even dispersion in all directions 90 ° H x 90 ° V
the speaker box is made of 15mm waterproof plywood and the finish is made of polyurethane black. The front is 1.5mm protected. plasticized, perforated. tin. A black, 10mm acoustic sponge is used to protect against splashing water or dust
box is equipped with 4 handles for easy manipulation, 35mm grip for speaker floor stand or spacer
For the total audio spectrum, it is used with the ICE-1000 as a low-tone support with the filter on the ICE500 included
Gret for Wedding Dj or Mobile Dj

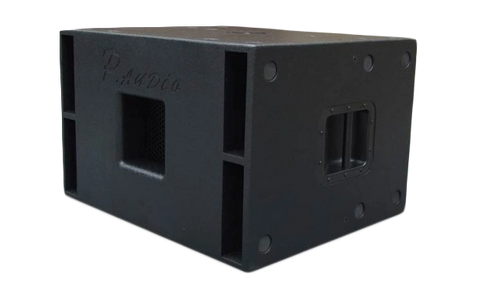

2x ICE 1000
Pa System Specification:
Power: 1000W Input sensitivity: 1V - 10kOhm Frequency range: 45Hz-120Hz (150Hz) Dispersion: Semi-directional (depends on stacking) Maximum SPL: 132dB Dimension: 700 x 450 x 600mm Weight: 41kg
It consists of 15 ”NEODYMIUM long-range drivers in the so-called. BANDPASS-HORN system
A Bang & Olufsen ICE1000 amplifier is used
Cutting frequency to 120 or 150hz
The speaker box is made of 15mm waterproof plywood and the finish is polyurethane black. The front is protected by 2mm plastic, perforated. tin. A black, 10mm acoustic sponge is used to protect against splashing water or dust
ICE-1000 can be used indoors and outdoors as SUB support for ICE-500, ICE-1500, PS-15, PSA-212
For grouping outdoors for the purpose of increasing range, a horizontal variant in the system of up to 4 pieces is used
Additional Equipment;
- digital or analogue mixer up to 12 channels
- power connectors
- XLR cables
- stands
PA OPTION 4 (100-300PAX)
2 x ICE 1500
Pa System Specification:
Power: 1560W
Input sensitivity: 1V - 10k
Frequency range: 130Hz-20kHz
Dispersion: 90 ° H x 40 ° V or (40 ° H x 90 ° V)
Maximum SPL: 133dB
Dimension: 450 x 700 x 585mm
Weight: 45kg
Great for a wedding dj or mobile dj
The ICE-1500 is a 3-way, 3 amplified active sound box, consisting of:
12 ″ LOW-MID neodymium driver with 3 ″ epoxy boost coil in folded horn system, uses Bang & Olufsen ICE1000 amplifier and operates in the 130Hz to 500Hz band
6 ″ HIGH-MID neodymium driver with 1.75 ″ epoxy boost coil in horn + acoustic lens system, driver cooled by aluminum cooler, uses Bang & Olufsen amplifier ICE500 and works in 500 to 2500Hz band
1 ″ TWEETER neodymium driver with 1.75 "coil in horn system, driver cooled by aluminum cooler uses 2 60W AB class amplifiers
system dispersion is 90 ° H x 40 ° V with rotation capability (40 ° H x 90 ° V)
speaker box is made of 15mm waterproof plywood, the finish is made of polyurethane structures in black. The front is protected by 1.5mm plastic coated, perforated sheet metal. A black, 10mm acoustic sponge is used to protect against splashing water or dust
box equipped with 4 handles for easy handling, a total of 8xM10 grips from the top, bottom, sides, and allows horizontal and vertical fixation, 35mm speaker stand / spacer grip, 80mm wheels for easier transportation (optional)
4x ICE 1000
Pa System Specification:
Power: 1000W Input sensitivity: 1V - 10kOhm Frequency range: 45Hz-120Hz (150Hz) Dispersion: Semi-directional (depends on stacking) Maximum SPL: 132dB Dimension: 700 x 450 x 600mm Weight: 41kg
It consists of 15 ”NEODYMIUM long-range drivers in the so-called. BANDPASS-HORN system
A Bang & Olufsen ICE1000 amplifier is used
Cutting frequency to 120 or 150hz
The speaker box is made of 15mm waterproof plywood and the finish is polyurethane black. The front is protected by 2mm plastic, perforated. tin. A black, 10mm acoustic sponge is used to protect against splashing water or dust
ICE-1000 can be used indoors and outdoors as SUB support for ICE-500, ICE-1500, PS-15, PSA-212
For grouping outdoors for the purpose of increasing range, a horizontal variant in the system of up to 4 pieces is used
Additional Equipment;
- digital or analogue mixer up to 12 channels
- power connectors
- XLR cables
- stands
OPTION 5 (20-Unlimited)
d&b AUDIOTECHNIK SOLUTIONS
Beyond the technical components, System reality manifests as a service and support structure in orbit around every d&b solution. Delivered by expert mobile dj , sometimes quirky professionals, this practical pa system setup includes education and training (renowned for its aha moments), service, application assistance, technical information, custom solutions and financing, not to mention a knowledgeable sales and distribution network. All carefully and thoughtfully conceived by a dedicated team, to carry out its vision:
As the renowned worldwide market leader, d&b audiotechnik defines the global standard for technology, quality and support of professional sound reinforcement systems.
In other words, to continuously elevate the quality of sound systems, not just for listeners or wedding dj but for users, owners and business. For better life, art, society and enterprise: today and tomorrow.
Roll the film to shed more light on this dark horse of the pro audio establishment.
